World Record Punch Out with 690 m Elevation Gain
The Challenge
The Romsdal gondola, a state of the art electric cable car, is set to welcome visitors beginning in May 2021. A service conduit was required to provide the restaurants and other services atop Nesaksla mountain with electric, gas, and water service. Prime Horizontal in association with Schenk, AG was chosen to complete the project with guidance services provided by ParaTrack HDD tools.
The ParaTrack Solution

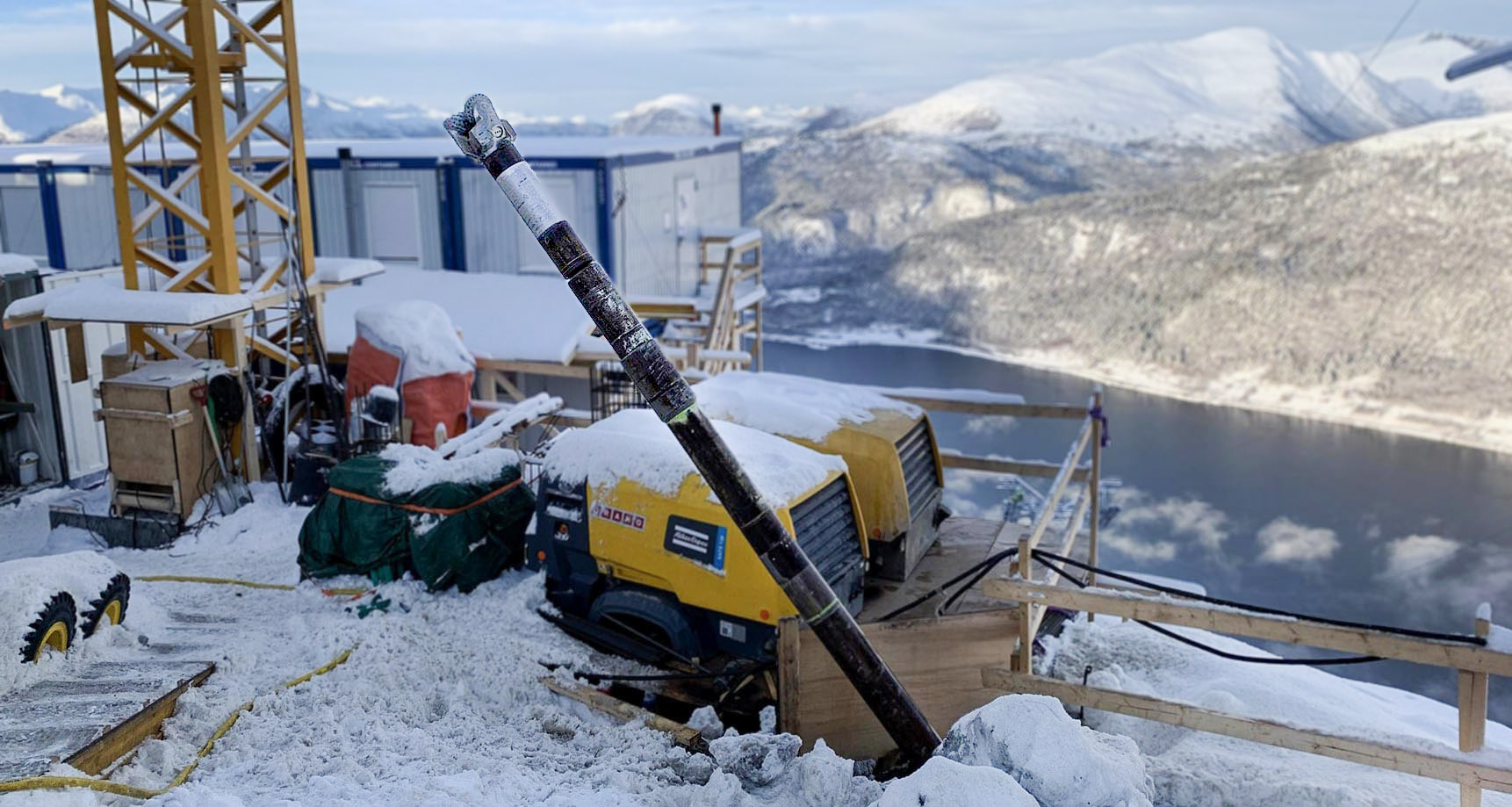

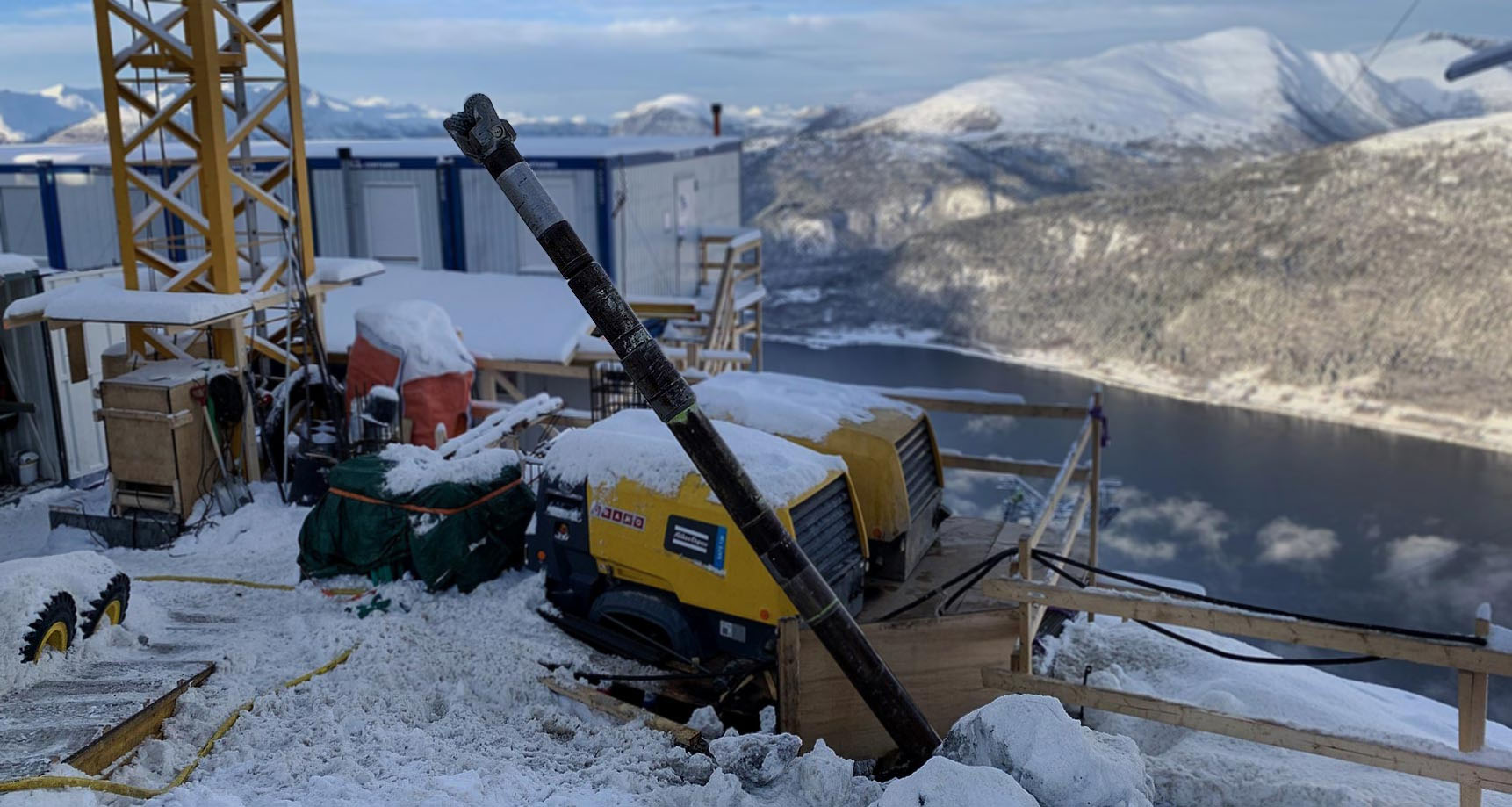

From a 90° entrance angle on the banks of the fjord below, the bore rose 690 m over just 1,340 m of total distance, punching out near the peak of Nesaksla mountain at an exit angle of 140°. With no room for error at exit, ParaTrack was the guidance solution selected to ensure project success.
The bore was guided by a combination of ParaTrack technologies. A ParaTrack P2 Guide Wire gave an independent verification of location for the first 350 m of drilling. The ParaTrack Gyro Module was then used exclusively to keep the bore precisely aligned for the nearly 800 m span where secondary verification was impossible. With a small available footprint and steep slopes, a specialized Large Field Beacon (LFB) was selected as the secondary verification system prior to punch-out. The LFB verified bore location to be less than 0.5 m off in both left/right location and critically, elevation, from a range of more than 120 m – giving the driller ample time to correct and execute a punch out directly on-plan.
The Romsdal gondola project illustrates ParaTrack’s unique role in the industry as a complete guidance toolbox, offering the flexibility to meet the needs of projects small, large, or record-breaking.
The unique trajectory and narrow acceptable exit window left the project
especially sensitive to variations in inclination. An At-Bit Inclination Assembly was run, alerting the driller of any changes in inclination at the bit as they occurred, and allowing immediate corrective action.
The Romsdal Gondola project required a willingness to think outside the box and tackle challenges in an unconventional manner. Thanks to excellent team work, the project was finished on-time and on-budget. A complete success!
Highlights
Total Length:
1,340 m
Entry Angle:
90°
Exit Angle:
140°
Elevation Gain:
690 m
Ground Formation:
Granite
